C_MBT C 13.0 W280 VP 410199

The roller brake tester C_MBT C 13.0 W280 combines compact design with versatility. Designed for light commercial vehicles, vans, and cars, it enables efficient testing of a wide range of vehicles – ideal for workshops with moderate vehicle throughput.

Thanks to its modular expandability with side-slip tester, scales, or axle damping tester, it adapts perfectly to your requirements and offers maximum flexibility.

With its space-saving motor, the tester impresses with its compact design and requires neither inspection pits nor large foundations. Installation and integration are therefore remarkably simple – without compromising on performance and reliability.

product details / scope of delivery

Description:
Digital roller brake tester light trucks, vans and cars
up to 13 t axle load with 2 x 7.5 kW drive motors

Particularly suitable for a very wide range of
different testable vehicles at a moderate vehicle throughput

  • Undivided design as standard and high flexibility in terms of the scope of application
  • Multifunctional use thanks to the optional two test speeds and the wide range of testable vehicles


Configuration:

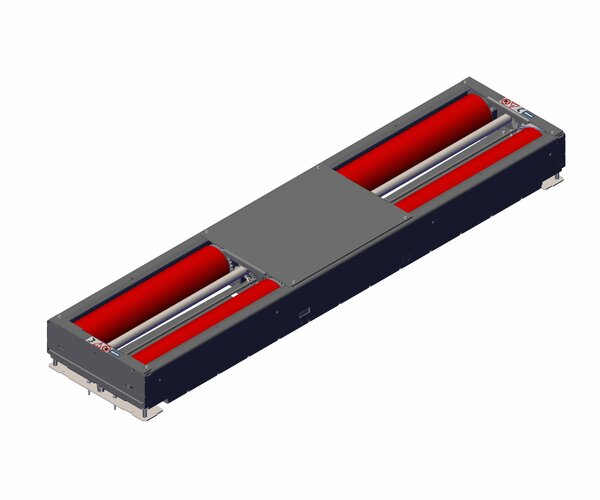

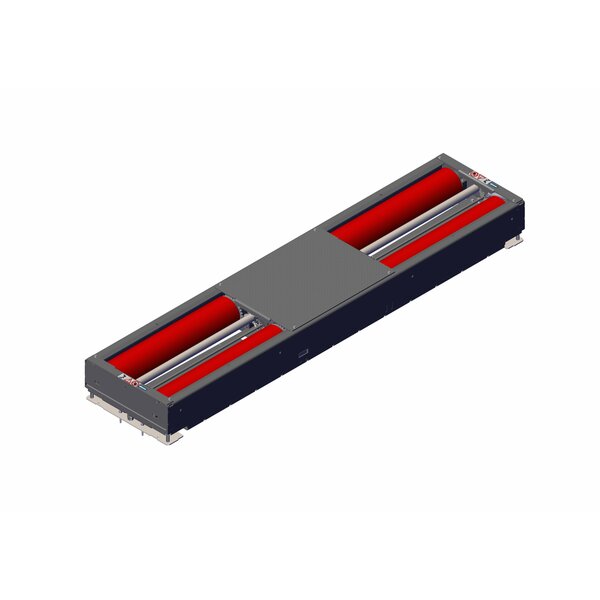

  • Roller set version C 13.0 W280
  • Self-supporting, undivided roller set (Compact)
  • High-quality powder coating: anthracite grey, RAL 7016


Scope of delivery:

  • Control box with integrated control unit
  • Roller set C 13.0 W280 with integrated interface module


Downloads

Sales documents

Technical Datasheet
Brochure MAHA CONNECT
DE EN
Technical Datasheet C_MBT C 13.0 W280
DE EN
Technical Datasheet (Printable version) C_MBT C 13.0 W280
DE EN

Technical Data

Technical data:

Axle load (traversable)13000 kg
Min. track870 mm
Max. track2800 mm
Drive power2 x 7.5 kW
Test speed2.6 km/h
Measured value display0-25 kN
Roller diameter202 mm
Roller axle distance400 mm
gG Fuse50 A
Power supply3/N/PE 400 V 50 Hz
Dimensions of roller set (L x W x H)2925 x 680 x 280 mm
